Result Details:

Result Details
HS Data TX Common Mode Voltage(See image)Vcmtx(Differential-1)168.67mVNumber of Vcmtx(Differential-1) Measured3.455000kVcmtx(Differential-0)166.78mVNumber of Vcmtx(Differential-0) Measured10.769000kNumber of HS Burst1Lane NameData

Trial 1

Trial 1: HS Data TX Common Mode Voltage

1.3.8 HS Data TX Vcmtx Mismatch Reference: D-PHY Specification v1.1 Section 9.1.1 Table 16, CTS v1.00(Test 1.3.8)

Test Summary: Pass Test Description: VCMTX mismatch when output is Differential-1 or Differential-0.
Pass Limits:[0.00000V to 5.00mV]Vcmtx Mismatch940µV

Result Details:

Result Details
Vcmtx(Differential-1)168.67mVVcmtx(Differential-0)166.78mVNumber of HS Burst1Lane NameData

Next

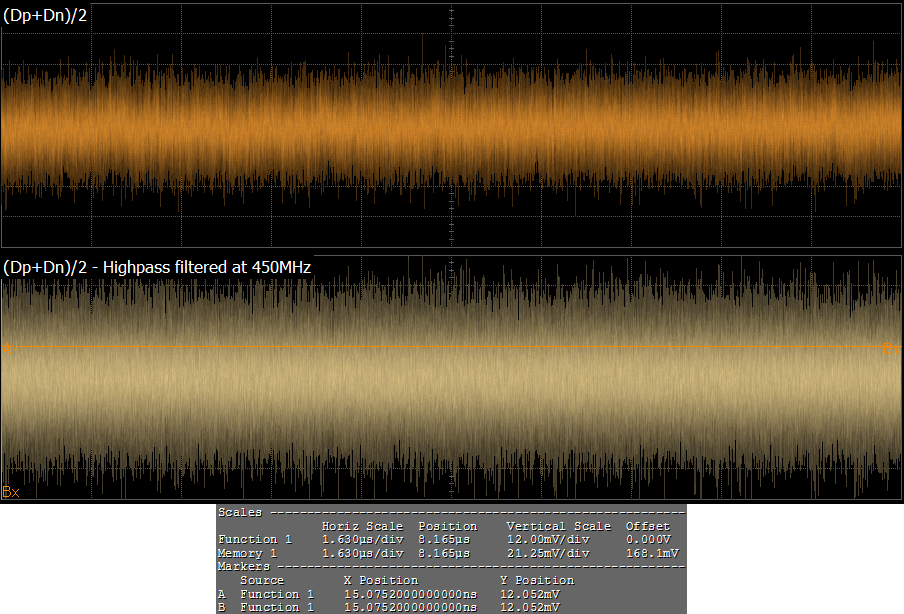

1.3.10 HS Data TX Common-Level Variations Above 450MHz (VCMTX(HF)) Reference: D-PHY Specification v1.1 Section 9.1.1 Table 17, CTS v1.00(Test 1.3.10)

Test Summary: Pass Test Description: Common-level variations above 450MHz.
Pass Limits:< 15.00mVVcmtx(HF)12.05mV

Result Details:

Result Details
Common Level Variations(>450Mhz)(See image)Number of HS Burst1Lane NameData

Trial 1

Trial 1: Common Level Variations(>450Mhz)

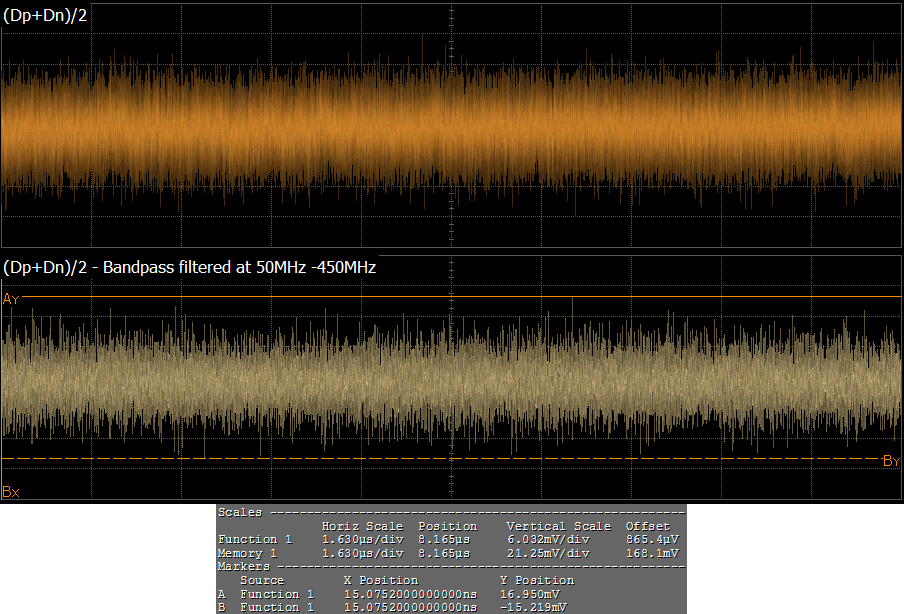

1.3.9 HS Data TX Common-Level Variations Between 50-450MHz (VCMTX(LF)) Reference: D-PHY Specification v1.1 Section 9.1.1 Table 17, CTS v1.00(Test 1.3.9)

Test Summary: Pass Test Description: Common-level variation between 50-450MHz.
Pass Limits:< 25.00mVVcmtx(LF)16.95mV

Result Details:

Result Details
Common Level Variations(50-450MHz)(See image)Number of HS Burst1Lane NameData

Trial 1

Trial 1: Common Level Variations(50-450MHz)

1.3.4 HS Data TX Differential Voltage(VOD0 Pulse) Reference: D-PHY Specification v1.1 Section 9.1.1 Table 16, CTS v1.00(Test 1.3.4)

Test Summary: Pass Test Description: HS transmit differential voltage.
Pass Limits:[-270.00mV to -140.00mV]Vod0(Worst)-211.32mV

Result Details:

Result Details
VOD0 (100000)(See image)Vod(Differential-0)-211.32mVNumber of HS Burst1Lane NameData

Trial 1

Trial 1: VOD0 (100000)

1.3.4 HS Data TX Differential Voltage(VOD1 Pulse) Reference: D-PHY Specification v1.1 Section 9.1.1 Table 16, CTS v1.00(Test 1.3.4)

Test Summary: Pass Test Description: HS transmit differential voltage.
Pass Limits:[140.00mV to 270.00mV]Vod1(Worst)148.86mV

Result Details:

Result Details
VOD1 (011111)(See image)Vod(Differential-1)148.86mVNumber of HS Burst1Lane NameData

Trial 1

Trial 1: VOD1 (011111)

1.3.5 HS Data TX Differential Voltage Mismatch (Pulse) Reference: D-PHY Specification v1.1 Section 9.1.1 Table 16, CTS v1.00(Test 1.3.5)

Test Summary: FAIL Test Description: VOD mismatch when output is Differential-1 or Differential-0.
Pass Limits:[0.00000V to 14.00mV]Vod Mismatch62.47mV

Result Details:

Result Details
Vod(Differential-1)148.86mVVod(Differential-0)-211.32mVNumber of HS Burst1Lane NameData

Next

1.3.6 HS Data TX Single Ended Output High Voltage(VOHHS Pulse) Reference: D-PHY Specification v1.1 Section 9.1.1 Table 16, CTS v1.00(Test 1.3.6)

Test Summary: Pass Test Description: HS Single Ended output high voltage.
Pass Limits:<= 360.00mVVohhs(Worst)271.81mV

Result Details:

Result Details
DpVOHHS (011111)(See image)DnVOHHS (011111)(See image)Vohhs(Dp)241.56mVVohhs(Dn)271.81mVNumber of HS Burst1Lane NameData

Trial 1

Trial 1: DpVOHHS (011111)

Trial 1: DnVOHHS (011111)

1.3.11 HS Data TX 20%-80% Rise Time (tR) Reference: D-PHY Specification v1.1 Section 9.1.1 Table 17, CTS v1.00(Test 1.3.12)

Test Summary: Pass Test Description: 20%-80% rise time of the HS differential signal. ComplianceTranTimeMax is 0.3*UI for Datarate ≤ 1Gbps and 0.35*UI for Datarate > 1Gbps.
Pass Limits:[100ps to ComplianceTranTimeMaxs]Rise Time373ps

Result Details:

Result Details
HS TX Risetime(See image)Measurement Threshold80,20Vod(1)148.86mVVod(0)-211.32mVPassLimit Max (ComplianceTranTimeMax)375psNumber of HS Burst1Lane NameData

Trial 1

Trial 1: HS TX Risetime

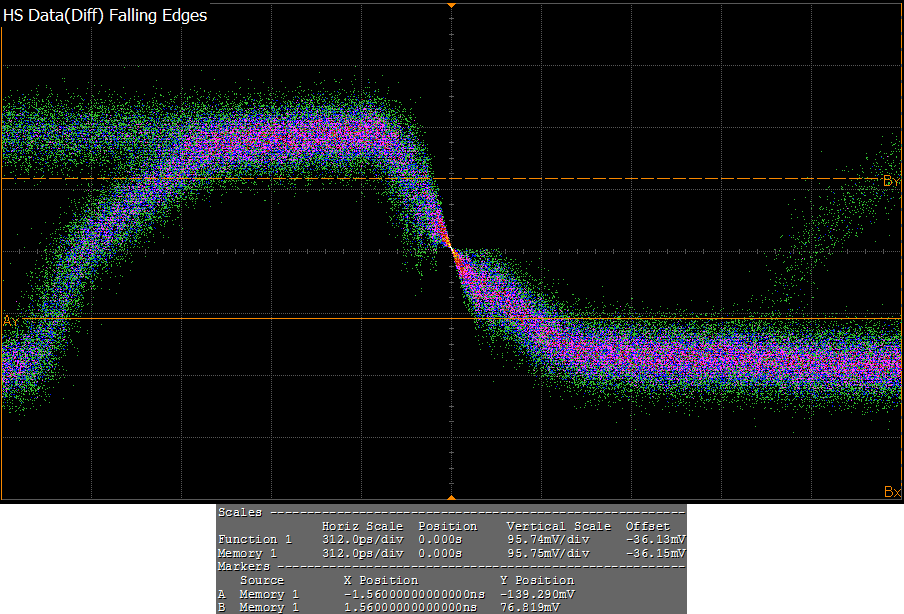

1.3.12 HS Data TX 20%-80% Fall Time (tF) Reference: D-PHY Specification v1.1 Section 9.1.1 Table 17, CTS v1.00(Test 1.3.12)

Test Summary: FAIL Test Description: 20%-80% fall time of the HS differential signal. ComplianceTranTimeMax is 0.3*UI for Datarate ≤ 1Gbps and 0.35*UI for Datarate > 1Gbps.
Pass Limits:[100ps to ComplianceTranTimeMaxs]Fall Time388ps

Result Details:

Result Details
HS TX Falltime(See image)Measurement Threshold80,20Vod(1)148.86mVVod(0)-211.32mVPassLimit Max (ComplianceTranTimeMax)375psNumber of HS Burst1Lane NameData

Trial 1

Trial 1: HS TX Falltime

1.4.17 HS Clock Instantaneous (UIinst) Reference: D-PHY Specification v1.1 Section 10.1 Table 26, CTS v1.00(Test 1.4.17)

Test Summary: Pass Test Description: UI instantaneous of HS Clock.
Pass Limits:< 12.500nsUIinst(Mean)1.255ns

Result Details:

Result Details
UIInst(See image)UIINST(Min)961psUIINST(Max)1.575nsNumber of HS Burst1

Trial 1

Trial 1: UIInst

1.5.3 HS Clock Rising Edge Alignment to First Payload Bit Reference: D-PHY Specification v1.1 Section 10.2, CTS v1.00(Test 1.5.3)

Test Summary: FAIL Test Description: Test will pass when there is a rising edge during the first payload bit. "First Payload Bit Alignment" will be set to '0' ONLY when a rising edge is detected during the first payload bit.
Pass Limits:<= 500.000000000mFirst Payload Bit Alignment1.000000000000

Result Details:

Result Details
First Payload Bit Clock Alignment(See image)Number of HS Burst1Lane NameData

Trial 1

Trial 1: First Payload Bit Clock Alignment

1.5.4 Data-to-Clock Skew (TSKEW(TX)) Reference: D-PHY Specification v1.1 Section 10.2.1 Table 27, CTS v1.00(Test 1.5.4)

Test Summary: FAIL Test Description: Data to Clock Skew [measured at transmitter].
Pass Limits:[ComplianceTranTimeMinUIinst to ComplianceTranTimeMaxUIinst]Tskew(Worst)264mUIinst

Result Details:

Result Details
LeftCrossing(See image)RightCrossing(See image)UIINST(Mean)1.26nsTSkew(Min)-280psTSkew(Avg)20psTSkew(Max)330psPassLimit Min (ComplianceTranTimeMin)-150mUIinstPassLimit Max (ComplianceTranTimeMax)150mUIinstNumber of HS Burst1Lane NameData

Trial 1

Trial 1: LeftCrossing

Trial 1: RightCrossing

Test Configuration Details
Device Description
Fixture Setup	Auto Load Switching
CTS Version	v1.00
High Speed Data Rate(Mbps)	800
Test Session Details
Infiniium SW Version	04.10.0010
Infiniium Model Number	DSO9104H
Infiniium Serial Number	MY52460107
Application SW Version	2.42
Debug Mode Used	No
Compliance Limits (official)	MIPI D-PHY Test Limit v1.1
Last Test Date	2013-03-08 15:50:52 +08:00

Test Statistics
Failed	4
Passed	9
Total	13

Margin Thresholds
Warning	< 2 %
Critical	< 0 %

Pass	# Failed	# Trials	Test Name	Actual Value	Margin	Pass Limits
	0	1	1.3.7 HS Data TX Static Common Mode Voltage(Vcmtx)	168.67mV	18.7 %	150.00mV <= VALUE <= 250.00mV
	0	1	1.3.8 HS Data TX Vcmtx Mismatch	940µV	18.8 %	0.00000V <= VALUE <= 5.00mV
	0	1	1.3.10 HS Data TX Common-Level Variations Above 450MHz (VCMTX(HF))	12.05mV	19.7 %	VALUE < 15.00mV
	0	1	1.3.9 HS Data TX Common-Level Variations Between 50-450MHz (VCMTX(LF))	16.95mV	32.2 %	VALUE < 25.00mV
	0	1	1.3.4 HS Data TX Differential Voltage(VOD0 Pulse)	-211.32mV	45.1 %	-270.00mV <= VALUE <= -140.00mV
	0	1	1.3.4 HS Data TX Differential Voltage(VOD1 Pulse)	148.86mV	6.8 %	140.00mV <= VALUE <= 270.00mV
	1	1	1.3.5 HS Data TX Differential Voltage Mismatch (Pulse)	62.47mV	-346.2 %	0.00000V <= VALUE <= 14.00mV
	0	1	1.3.6 HS Data TX Single Ended Output High Voltage(VOHHS Pulse)	271.81mV	24.5 %	VALUE <= 360.00mV
	0	1	1.3.11 HS Data TX 20%-80% Rise Time (tR)	373ps	0.7 %	100ps <= VALUE <= ComplianceTranTimeMaxs
	1	1	1.3.12 HS Data TX 20%-80% Fall Time (tF)	388ps	-4.7 %	100ps <= VALUE <= ComplianceTranTimeMaxs
	0	1	1.4.17 HS Clock Instantaneous (UIinst)	1.255ns	90.0 %	VALUE < 12.500ns
	1	1	1.5.3 HS Clock Rising Edge Alignment to First Payload Bit	1.000000000000	-100.0 %	VALUE <= 500.000000000m
	1	1	1.5.4 Data-to-Clock Skew (TSKEW(TX))	264mUIinst	-38.0 %	ComplianceTranTimeMinUIinst <= VALUE <= ComplianceTranTimeMaxUIinst
